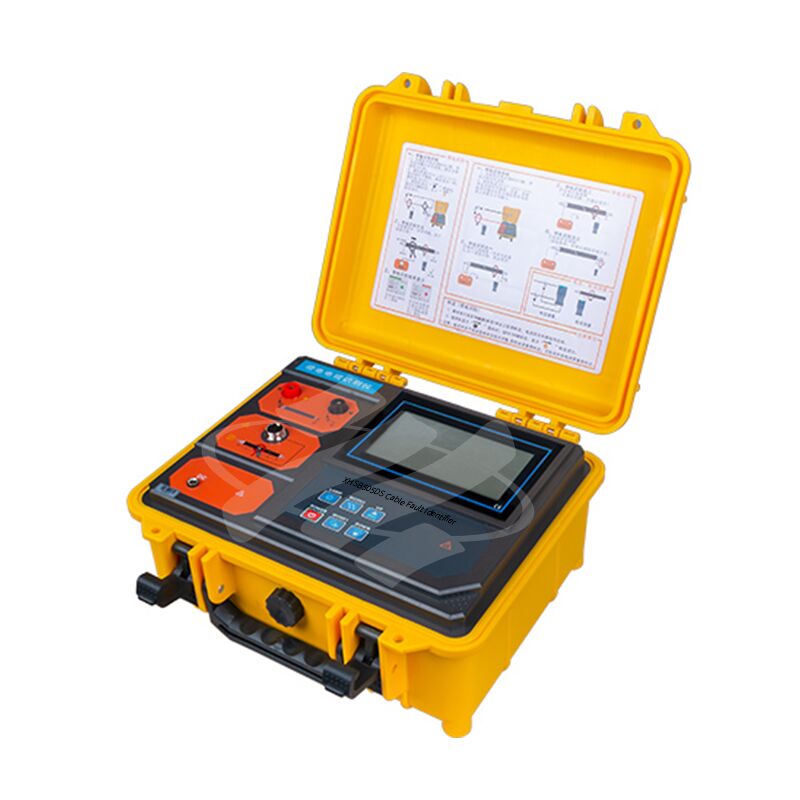

Live Cable Fault Locator and Direct Finder for Accurate Cable Identification

Name: Live Cable Fault Locator and Direct Finder for Accurate Cable Identification
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHSB505DS
Price: 1,050.00 USD
Availability: InStock

جزئیات محصول:

محل منبع:	شیاط
نام تجاری:	XZH TEST
گواهی:	CE
شماره مدل:	XHSB505DS

اطلاعات دقیق

محل منبع:

شیاط

نام تجاری:

XZH TEST

گواهی:

شماره مدل:

XHSB505DS

برجسته کردن:

High Light

برجسته کردن:

Live Cable Fault Locator,Direct Finder Cable Fault Locator,Cable Identification Fault Locator

Direct Finder Cable Fault Locator

Cable Identification Fault Locator

Trading Information

مقدار حداقل تعداد سفارش:

1 مجموعه

جزئیات بسته بندی:

بسته بندی چوبی

زمان تحویل:

5-8 روز کاری

شرایط پرداخت:

T/T

قابلیت ارائه:

3000 واحد در سال

توضیحات محصول

XHSB505DS

A specialized tool designed for cable technicians to solve technical challenges in cable identification and direct fault finding.

Cable identification begins with operations at both ends of the cable. It is essential to ensure that the dual numbering at both ends of the cable is accurate. This instrument is designed using PSK technology combined with a precise algorithm.

Transmission frequency	For live identification: 625Hz, 1562Hz, 2500Hz, 10000Hz; For power-off identification: 1562Hz, 2500Hz. Use the up and down arrow keys to adjust the transmission frequency.
transmission line length	3m
Display mode	Large LCD screen displays the remaining battery voltage in real time, with backlight.

Live Cable Fault Locator and Direct Finder for Accurate Cable Identification 0

Identifying Power-Out Cables:

Wrap the Φ200mm flexible current clamp around each cable in the direction of the arrows shown in the diagram.

The wiring diagram below is suitable for on-site identification of target cables that are power-out cables. Please ensure that the arrows on the flexible current clamps point to the far end of the cable (the end where the cable core is grounded), i.e., pay attention to the direction of the positive input of the pulse-coded current signal.

When performing live or de-energized identification, do not bring the coil interface of the flexible current clamp close to the cable for measurement to avoid errors.

Live Cable Fault Locator and Direct Finder for Accurate Cable Identification 1

Note: Do not place the cable near the coil connector during measurement to avoid errors.
