Portable High Voltage Surge Generator for Underground Cable Fault Location

Name: Portable High Voltage Surge Generator for Underground Cable Fault Location
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHHV535-6Z
Price: 1,050.00 USD
Availability: InStock

جزئیات محصول:

محل منبع:	چین
نام تجاری:	XZH Test
گواهی:	CE/ISO
شماره مدل:	XHHV535-6Z

اطلاعات دقیق

محل منبع:

چین

نام تجاری:

XZH Test

گواهی:

CE/ISO

شماره مدل:

XHHV535-6Z

برجسته کردن:

High Light

برجسته کردن:

portable high voltage surge generator,underground cable fault locator,surge generator for cable fault location

underground cable fault locator

surge generator for cable fault location

Trading Information

مقدار حداقل تعداد سفارش:

1 دور

جزئیات بسته بندی:

جعبه چوبی

زمان تحویل:

5-8 روز کاری

شرایط پرداخت:

t/t

قابلیت ارائه:

2000 واحد در سال

توضیحات محصول

XHHV535-6Z

Model NO.

XHHV535-6Z

Usage

Network Cable Tester, HDMI Cable Tester, Audio Cable Tester, Coaxial Cable Tester, Digital Cable Tester

Test Region

Forming Cable

Cable Type

Shielded

Power

Electricity

Certification

CE, ISO

Customized

Color

Black

Output Voltage

0-35kv (40kv Can Be Customized)

Capacitance

4 Microfarad

Transport Package

Exported Wooden Case

Trademark

XZH TEST

Origin

China

Production Capacity

2000PCS/Year

XHHV535-6Z high voltage surge generator integrates DC high voltage source, energy storage capacitor and discharge ball gap. More than 30 kg, pulse energy storage capacitor more than 20 kg).

The power supply incorporates high-precision, high - stability special high - voltage electronic components along with high - frequency high - voltage technology. As a result, the structure of the entire machine is simple and the weight is ultra - light. This pulse generator, designed with a humanized operation mode to cater to people's habit of using transformers and operation boxes to produce DC high voltage, is safe and reliable. It can endure impacts without getting damaged. Even in the event of a high voltage short circuit to the ground, it can still work normally. It is now the lightest and most user - friendly portable DC shock high - voltage equipment.

★ With over current, over voltage, overheating automatic protection function;
★ with DC voltage resistance, impact discharge function;
★ High voltage pulse output is uniform and controllable;
★ Strong short-circuit protection function, can make the high-voltage output directly to the ground short-circuit work;
★ With current, voltage double 2.5 level pointer table display, intuitive and clear, fault point is fully discharged at a glance, real-time reaction discharge process;
★ High voltage side voltage measurement, real-time accurate;
★ with zero start protection more safe and reliable;
★ Unique high voltage measurement design, in the stopped state, the voltmeter can indicate the capacitance voltage value in real time, so that the operator knows the high voltage;
★ Discharge time can be arbitrarily set within the appropriate interval.

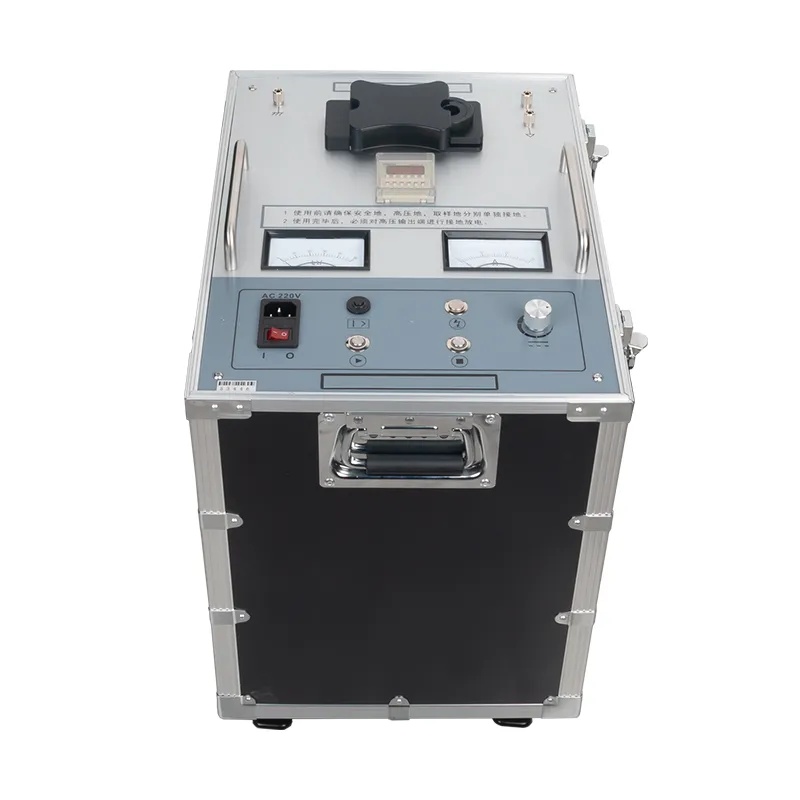

Portable High Voltage Surge Generator for Underground Cable Fault Location 0

Impact high voltage	0-35kV(default 0-32kV)
High voltage partial pressure	Voltage Accuracy 2.5 grade
Built-in capacitor	6μF
Working power	AC 220V ± 10% 50Hz ± 2Hz(60Hz can be customized)
Discharge power	0-3072J(default 0-1568J)
Output voltage polarity	negative polarity
Impact power	400W
Overcurrent protection	16A(more than 3 seconds)
Overtemperature protection	65ºC
Ambient temperature	-20 ~ + 50 ºC
Impact time	1 ~ 10 seconds
Over temperature protection	85 ºC
Volume/size	430L × 345W × 545H(mm)
